Novosuber Dry Thick Layer

Suberlev’s Novosuber Dry Thick Layer: eco-friendly powder coating that insulates, waterproofs, and decorates interiors, facades, and roofs, with a 7-year warranty.

Rendimiento 1- 2,5 kg/m² (en función de la aplicación).
Espesor 3 mm en total.
Aplicación Proyectado con pistola Suberlev.
Secado 4-6 horas (en condiciones normales).
Diluyente 6 L de agua por cada 5,5 kg de producto.
Conductividad térmica 0,052 W/mºK (EN 12667)
Adhesión por atracción directa 1,8 MPa (A:B =10%: 90%) (UNE-EN 1542)
¡Me Interesa! Ficha técnica

This product is currently out of stock and unavailable.

Description

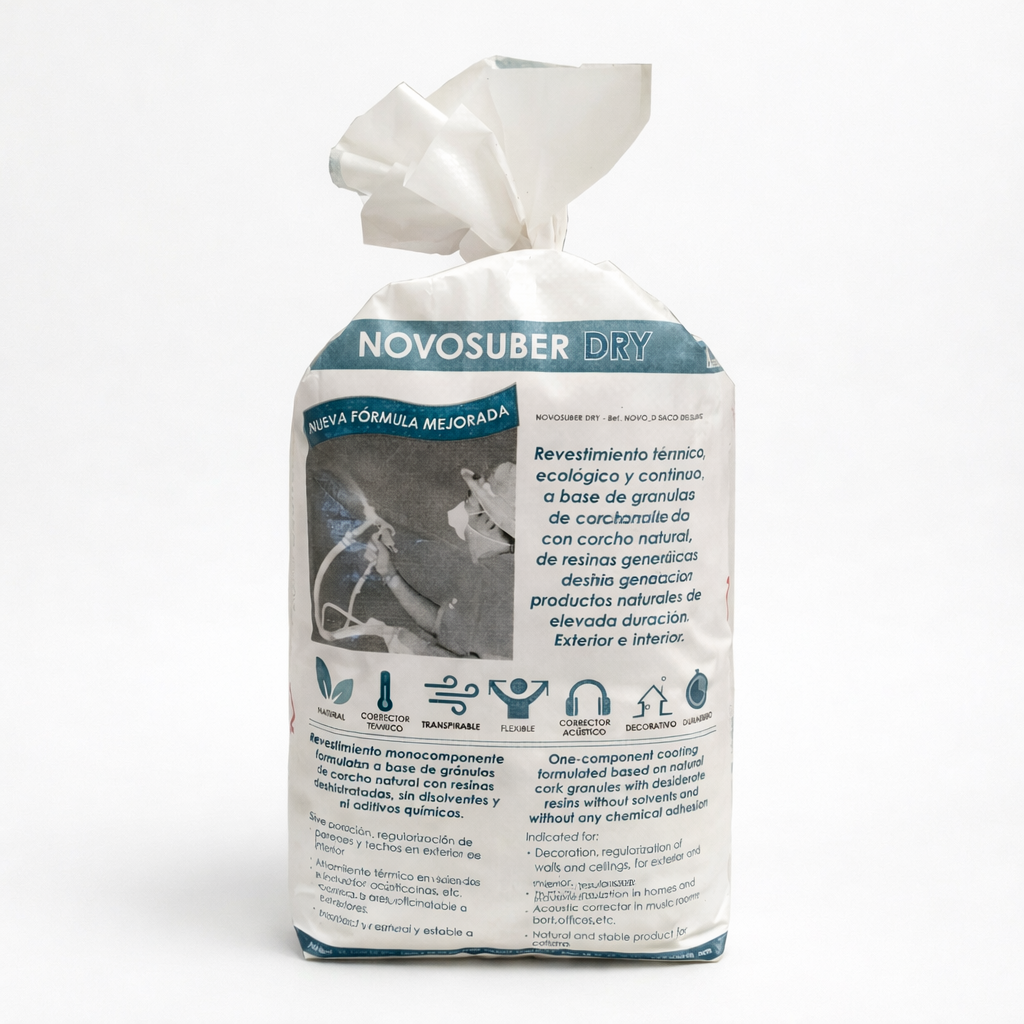

Novosuber Dry Thick Layer: Eco-Friendly Cork Powder Coating

Elevate your projects with Novosuber Dry Thick Layer, a single-component powder coating formulated with natural cork granules and dehydrated resins, free of solvents and chemical additives. This non-toxic, biodegradable product offers thermal-acoustic insulation, waterproofing (with additional finish), and decoration for interiors, facades, and roofs. With a 7-year warranty, it’s ideal for sustainable applications requiring high durability and extended storage.


Key Features

  • Thermal Insulation: Thermal conductivity of 0.052 W/m·K, reduces heat flow by up to 69.15%, perfect for joint-free thermal correction.
  • Acoustic Improvement: Enhances absorption of airborne noise, impact, and reverberation.
  • Waterproofing: Class I water vapor permeability, waterproof with 1.5-2.0 L/m² of Thermo-Cubiertas.
  • High Adhesion: 0.9 MPa (concrete) and 1.3 MPa (metal), compatible with concrete, wood, PVC, and more.
  • Biodegradable and Non-Toxic: Eco-friendly, breathable, and safe for interiors.
  • Flexibility: Prevents shrinkage cracks, adaptable to structural movements.
  • Fire Resistance: Inhibits flame propagation.
  • Easy Transport: Powder format, with up to 3 years of storage.
  • Versatile Finish: Can be tiled, sanded, plastered, puttied, or painted with Thermo-Cubiertas (1.5-2.0 L), Thermo-Fachadas (0.5 L), or Thermo-Interiores (0.35 L).

Why Choose Novosuber Dry Thick Layer?

Novosuber Dry Thick Layer is the sustainable choice for projects demanding durability, insulation, and aesthetics. Its powder format, with a granulometry of 0.8-1.0 mm, ensures easy transport and storage, while its thick-layer application (up to 10 mm per coat) delivers a robust finish. This coating protects facades from degradation, regularizes surfaces, and enhances thermal-acoustic comfort, making it ideal for interiors, roofs, and facades.


Application Guidelines

  1. Surface Preparation: Ensure the surface is clean, dry, and dust-free. Repair degraded areas, apply Thermal Putty (Suberconfort Dry) for defects, and Suber-Fix on powdery or absorbent surfaces.
  2. Mixing: Add 7 L (±5%) of water per 15 L sack and mix with an industrial mixer at high speed for 3-5 minutes until homogeneous.
  3. Application: Spray with a compressor (minimum 250 L/min) and Suberlev airbrush gun (7.00-8.00 mm nozzle) or Suberlev projection machines, 40-60 cm from the surface, in one or more coats (max 10 mm per coat). Allow 12 hours drying at 20°C.
  4. Finish: Coat with Thermo-Cubiertas, Thermo-Fachadas, or Thermo-Interiores, or tile, sand, plaster, putty, or paint as needed.
  5. Consumption: 5-15 mm thickness; a 15 L sack covers 3 m² at 5 mm or 1 m² at 15 mm.

Technical Specifications

Property Value Standard
Appearance Powder
Color Natural Cork
Granulometry 0.8-1.0 mm
Thermal Conductivity 0.052 W/m·K EN 12667
Heat Flow Reduction 69.15% Internal Method
Water Vapor Permeability Class I EN 1062-3
Adhesion (Concrete) 0.9 MPa Internal Method
Adhesion (Metal) 1.3 MPa Internal Method
Fire Resistance Inhibits Propagation Internal Method

Storage and Precautions

Store in a cool, dry place (5-45°C) for up to 3 years in its original container, avoiding direct sunlight or freezing. Keep out of reach of children and prevent product buildup on container walls to avoid clumping. Clean tools with water immediately after application. Available in 15 L returnable raffia sacks (mix with 7 L of water ±5%).


Ideal For

  • Interiors requiring thermal-acoustic insulation
  • Facades exposed to degradation
  • Roofs needing waterproofing and insulation
  • Surface regularization and decoration
  • Sustainable projects with long-term storage needs

Certified Quality

Tested to European standards and internal methods, with advanced technology for optimal performance.

Additional information

Rendimiento

1- 2,5 kg/m² (en función de la aplicación).

Espesor

3 mm en total.

Aplicación

Proyectado con pistola Suberlev.

Secado

4-6 horas (en condiciones normales).

Diluyente

6 L de agua por cada 5,5 kg de producto.

Conductividad térmica

0,052 W/mºK (EN 12667)

Adhesión por atracción directa

1,8 MPa (A:B =10%: 90%) (UNE-EN 1542)
