Description

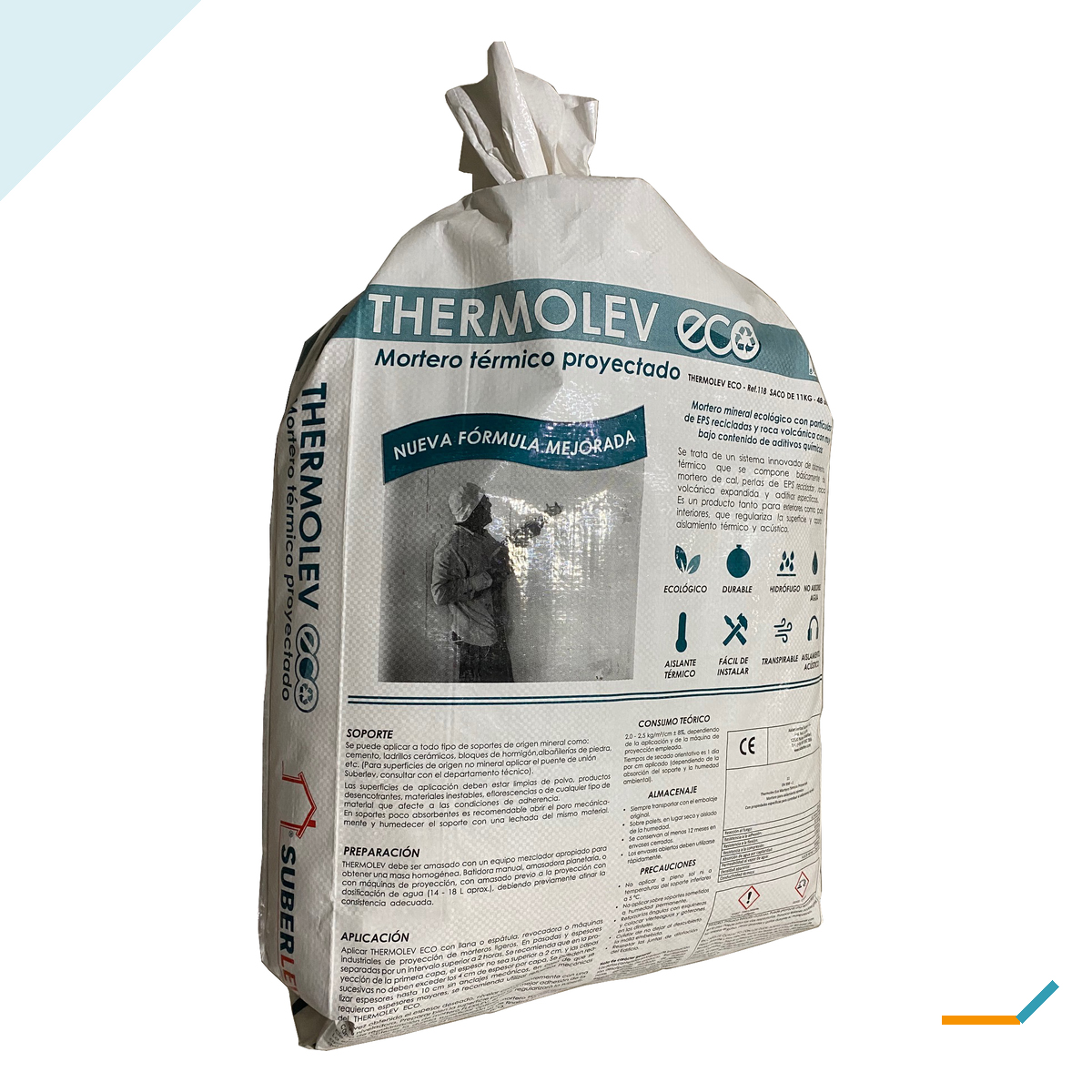

Thermolev ECO: ETICS Thermal Mortar for Insulation
Optimize efficiency with Thermolev ECO, an External Thermal Insulation Composite System (ETICS) formulated with lime mortar, expanded volcanic rock, 80% recycled EPS beads, and specific additives. This eco-friendly mortar is designed for thermal and acoustic insulation, facade restoration, and moisture correction in interior and exterior applications.
Key Features
- Thermal Insulation: Thermal conductivity of 0.05 W/m·K, eliminates thermal bridging for enhanced energy efficiency.
- Sound Insulation: Improves room acoustics by reducing ambient noise.
- Moisture Protection: Natural water-repellent, breathable, and with W2 capillary action, corrects rising damp in skirting boards.
- Durability: Weather-resistant, smooths imperfections, and prevents surface degradation over time.
- Eco-Friendly: Biodegradable, non-toxic, with 80% recycled EPS content.
- Mechanical Strength: 0.50 N/mm² flexural and 0.85 N/mm² compressive strength for structural stability.
- Fire Resistance: Class B-s1, d0, minimizes flame spread risks.
Why Choose Thermolev ECO?
Thermolev ECO is the perfect choice for sustainable insulation projects in new constructions or facade renovations. Its formula, with a volumetric mass of 220 kg/m³ ± 20 and granulometry of 1.5-2.5 mm, supports robust application in 3-4 cm layers. This mortar enhances energy efficiency, protects against moisture, and smooths surfaces, making it ideal for facades, skirting boards, and interior spaces.
Application Guidelines
- Surface Preparation: Ensure the surface is firm, clean, and free of loose particles. Moisten with clean water. Plan technical joints or interruptions near downspouts, corners, or edges for large surfaces.
- Mixing: Mix 15-18 L of water per 50 L sack using a blender or planimetric mixer until a dense, homogeneous paste is achieved. Do not add water during application. Use a stainless steel trowel, scraper, and aluminum/wood profiles for corners.
- Application: Apply with a trowel or Suberlev special application machines in 3-4 cm layers. Smooth the surface after applying Thermolev ECO.
- Finishing: Apply two 2 mm layers of Flexilev fibred mortar over moist Thermolev ECO, with a 160 g/m² intermediate mesh, for a smooth, breathable finish.
- Consumption: 2-2.5 kg/m² per cm of thickness.
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Color | Off White | – |
| Appearance | Paste-like mass | – |
| Granulometry | 1.5-2.5 mm | – |
| Volumetric Mass | 220 kg/m³ ± 20 | EN 1015-10 |
| Thermal Conductivity | 0.05 W/m·K | EN 12667 |
| Flexural Strength | 0.50 N/mm² | EN 1015-11 |
| Compressive Strength | 0.85 N/mm² | EN 1015-11 |
| Capillary Action | W2 | EN 1015-18 |
| Fire Resistance | Class B-s1, d0 | – |
| Drying Time | 1.50 cm/day (variable) | – |
| Working Time | 0.45-1.15 hours | – |
Storage and Precautions
Store in a cool, dry place (5-45°C) for up to 3 years in its original, sealed container, avoiding direct sunlight. Keep out of reach of children. For professional use only; may irritate eyes and respiratory tract. Use protective equipment and avoid skin contact. In case of eye contact, rinse with plenty of water and seek medical advice. Clean tools with water immediately; use mechanical methods for hardened residue. Available in 50 L sacks (approx. 11 kg).
Ideal For
- New construction or facade restoration
- Skirting boards with capillary rising damp
- Spaces requiring thermal and acoustic insulation
- Surfaces with imperfections or irregularities
- Sustainable projects with energy efficiency needs
Certified Quality
Tested to EN 998-1 standards, with CE marking and advanced technology for optimal performance
