Description

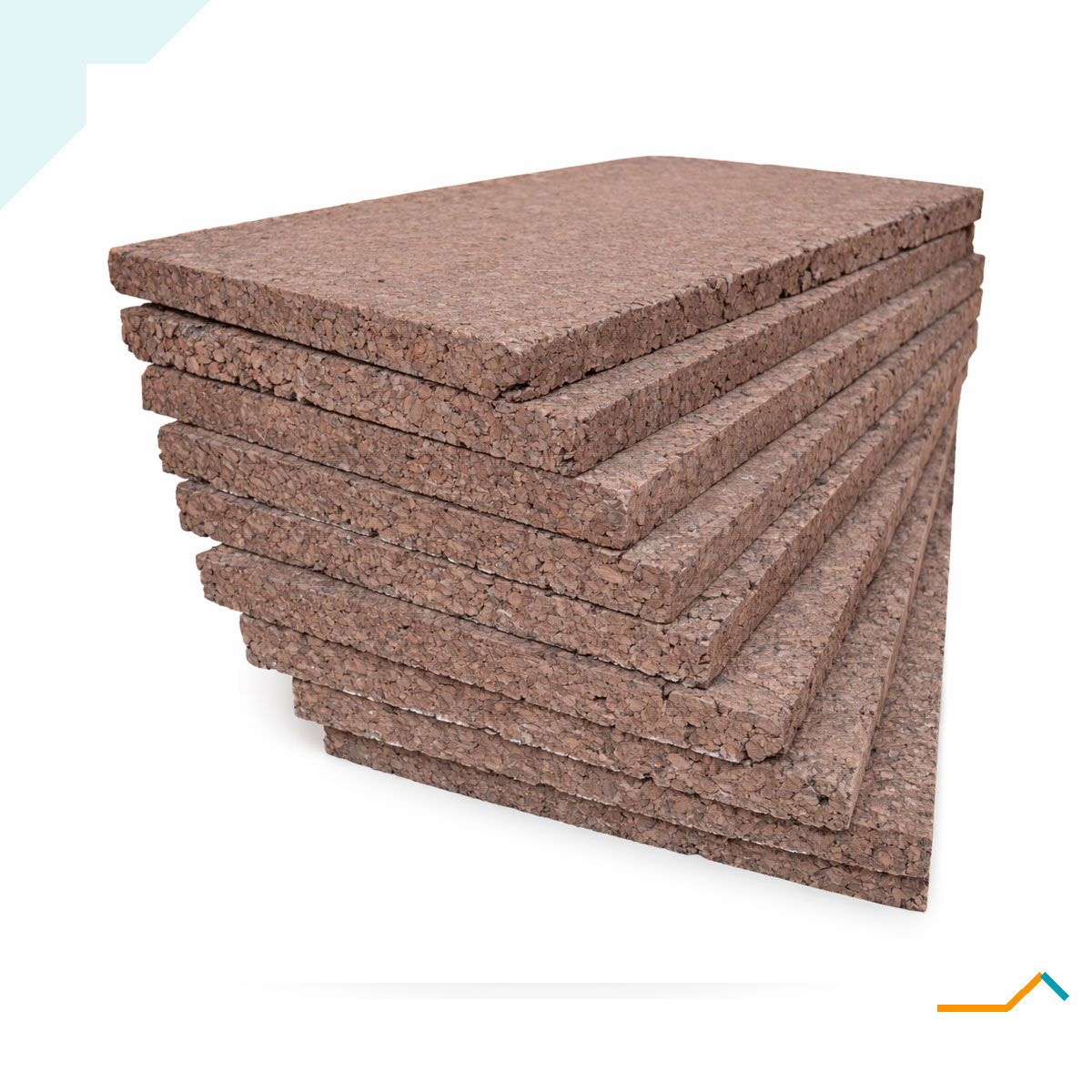

Natural Cork Board: ETICS Boards for Sustainable Insulation
Elevate comfort with Natural Cork Board, an innovative External Thermal Insulation Composite System (ETICS) made from 100% natural cork granules expanded using a water vapor process, free of synthetic agents. These eco-friendly boards provide exceptional thermal, acoustic, and vibrational insulation, perfect for facades, roofs, refrigerated rooms, and vibration-sensitive structures.
Key Features
- Thermal Insulation: Thermal conductivity of 0.04 W/m·K and heat resistance up to 2.00 m²·K/W (80 mm), enhancing energy efficiency.
- Sound Insulation: Sound reduction index of 53 dB (double blade 11 cm + 4 cm board), ideal for noisy environments.
- 100% Natural: Biodegradable, non-toxic, with hygrothermal regulation to manage moisture effectively.
- Durable: Flexural strength ≥104 kPa, compression strength up to 30 kg/cm², and dimensional stability of 14.4%.
- Easy Installation: Lightweight, easy-to-cut, and walkable with rigid finishes, streamlining ETICS application.
- Breathable: Water vapor resistance factor of 5-10, ensuring natural ventilation.
- Fire Safety: Euroclass E, with a 13-hour thermal delay (20 cm) and no toxic fume emissions.
Why Choose Natural Cork Board?
Natural Cork Board is the ideal choice for sustainable insulation projects requiring thermal, acoustic, and vibrational performance. Its 500 x 1000 mm boards, available in 40, 60, and 80 mm thicknesses, deliver outstanding results with a density of 1.1 ± 0.05 g/cm³. The 100% natural composition and hygrothermal regulation make it perfect for facades, flat or sloped roofs, and industrial applications, ensuring comfort and longevity.
Installation Guidelines
- Surface Preparation: Ensure the surface is completely dry, clean, and free of dust, rust, grease, or loose paint. Repair cracks or uneven areas with Thermal Mastic. Avoid high-pressure washing with chemicals to prevent internal moisture.
- Adhesive Application: Apply Thermal Mastic with a notched trowel at a coverage rate of 2.2 kg/m² to ensure strong board adhesion.
- Board Placement: Install boards from bottom to top, staggering them to avoid continuous joints.
- Anchoring: Secure boards with fixing anchors. Seal joints and cover anchor irregularities with Thermal Mastic.
- Finishing: Apply 1-2 additional layers of Thermal Mastic to plaster and unify the surface. Once dry, apply the desired finish coat.
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Appearance | Rigid board made of natural cork | – |
| Dimensions | 500 x 1000 mm | – |
| Thickness | 40 / 60 / 80 mm | – |
| Density | 1.1 ± 0.05 g/cm³ | – |
| Composition | 100% natural cork | – |
| Application Temperature | -180°C to 140°C | – |
| Thermal Conductivity | 0.04 W/m·K | EN 12667 |
| Heat Resistance (40 mm) | 1.00 m²·K/W | EN 12667 |
| Heat Resistance (60 mm) | 1.50 m²·K/W | EN 12667 |
| Heat Resistance (80 mm) | 2.00 m²·K/W | EN 12667 |
| Specific Heat Capacity | 1852 J/(kg·K) | – |
| Sound Reduction Index | Rw=53 dB (double blade 11 cm + 4 cm board) | – |
| Flexural Strength | ≥104 kPa | DIN EN 826 |
| Compression Strength | 30 kg/cm² | DIN EN 826 |
| Point Charge | 0.056-0.047 N/mm² | DIN 52274 |
| Ultimate Tensile Strength | 1.4-2.0 kg/cm² | DIN 18165-1 |
| Dimensional Stability | 14.4% | – |
| Water Vapor Resistance | 5-10 | – |
| Fire Resistance | Euroclass E | UNE EN 13501-1 |
| Delay Time (20 cm) | 13 hours | EN 13170 |
Storage and Precautions
Store in a cool, dry place, protected from moisture and direct sunlight. Keep out of reach of children. Available in 500 x 1000 mm boards, with thicknesses of 40 mm (5 units), 60 mm, and 80 mm (contact factory for packaging details).
Ideal For
- Thermal and sound insulation for walls and facades
- Flat or sloped roofs requiring insulation
- Refrigerated rooms and industrial spaces
- Vibration insulation in structural applications
- Sustainable projects with 100% natural materials
Certified Quality
Tested to EN 1504-2 and EN 13170 standards, with CE marking for optimal performance.
